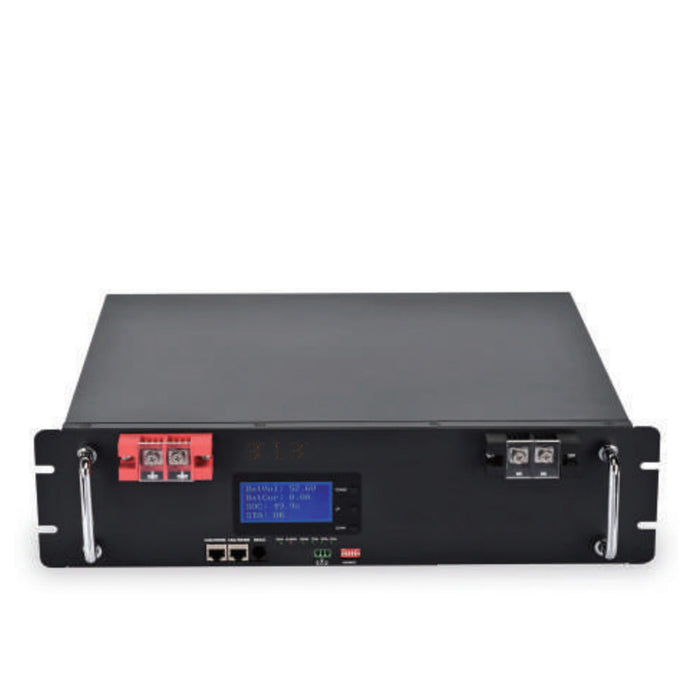

48V 50Ah LiFePO4 Batteries

Spec of Typhon TP-LF4850 48V 50Ah LiFePo4 Battery:

• Nominal Voltage: 51.2V
• Nominal Capacity: 50AH
• Stored Energy: 2560Wh
• Resistance: 80 mΩ
• Self Discharge Rate: <3% per Month
• Maximum Continous Charge Current:  50A
• Maximum Continous Discharge Current:  50A
• Charge Cut-off Voltage:  58.4 V
• Discharge Cut-off Voltage:  40V
• Dimensions (mm): L483×W400×H133
• Weight: 31.5kg
• Terminal Type:  Screwed Terminal
• Case Material: SS
• Discharge Temperature: -20 to 60 °C
• Charge Temperature: 0 to 55 ºC
• Storage Temperature: -20 to 55 ºC
• Short Circuit Protection: Automatically recover after removal of short
• Life Expectancy: 6000 times

The Main features of TP-LF4850 48V 50Ah Battery:

• 51.2V 50Ah Lithium battery
• Super safe lithium iron phosphate (LiFePO4) chemistry reducing the risk of explosion or combustion due to high impact, over-charging or short circuit situation.
• Battery Management System (BMS) controls the parameters of the battery to provide optimum safety by protecting against over-charging and over-discharging.
• The RS485/RS232/CAN communication protocol are compatible with Deye, Goodwe, Growatt, Solax, SMK, MUST,Goodwe, Victron, SMA. Voltronic inverter etc.
• BMS enhanced design balances the battery cells, optimizing battery performance.
• Support 10 units parallel connection to 25kwh system.

Q1. Can I have a TP-LF4850 48V 50Ah Battery sample order?
A. Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A. Sample needs 5-10 days, mass production time needs 3-5 weeks, it depends on order quantity.

Q3. Do you have any MOQ limit the TP-LF4850 48V 50Ah Battery?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the TP-LF4850 48V 50Ah Battery and how long does it take to arrive?
A. We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed with an TP-LF4850 48V 50Ah Battery order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7. How about cycles life of your battery?
All of batteries are 6000 cycles life beyond 80% DOD. 10 years life expectancy at one cycle per day.
